RFID metal tag
CL2001I
FOB
1000 pieces
10000000pieces / Month
China
30Day
Doing round size with hole, chip can be choosen per your requests and application area.
Normal we do ABS material
Engraving numbers or silkscreen logo can be done on the surface.
widely used for E - ticket, tree management, equipment management, etc
Normal we do ABS material
Engraving numbers or silkscreen logo can be done on the surface.
widely used for E - ticket, tree management, equipment management, etc
Quantity

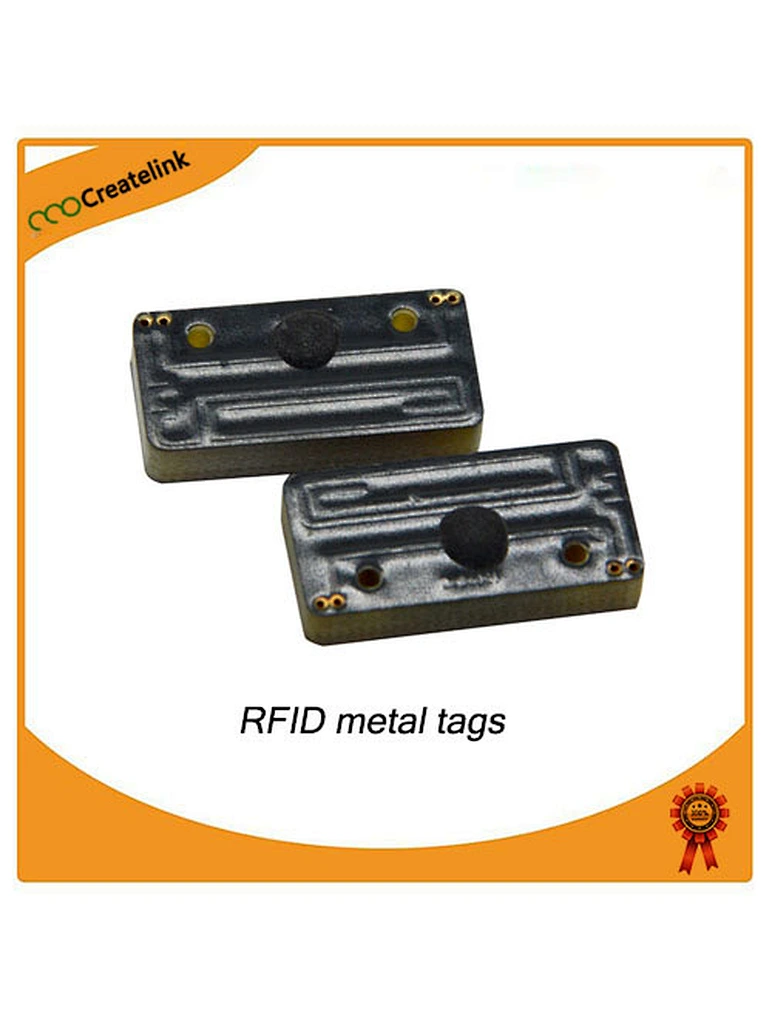

RFID metal tag is produced by special production processes. The tag is featured by very strong case and high temperature resistant.
We offers on-metal tag by varous designs. It can meet then need of different application.
| product name | RFID metal tag |
Material: | ceramic |
Model: | SP1809 |
Read distance from reader: | >0.7m(used the ImpinJ fixed reader);>0.3m(used the ImpinJ Handled reader |
Chip: | Alien H3 |
Storage: | EPC96bit;USER:512bits |
Working frequency: | 902-928MHz(UHF) |
Working temperature: | -25℃-85℃ |
Data reservation term: | 10 years |
Air interface protocol: | EPC Class1 Gen2; ISO18000-6C |
Drop Test: | 1 meter high drop test by 200 times |
Alcohol Testing: | 95% alcohol concentration tested |
RoHS: | Pass |
Weight: | 0.5g |
Warranty security: | 1 year |
- Countinuous counting and tracking
- Operate without disruption or freezes
- Immediately recognize discrepancies
- Find missing&misplaced inventory
- Avodi stoppage&rush replacements
- Recognized safely
