High Quality UHF rfid tags or Entrance Access Control

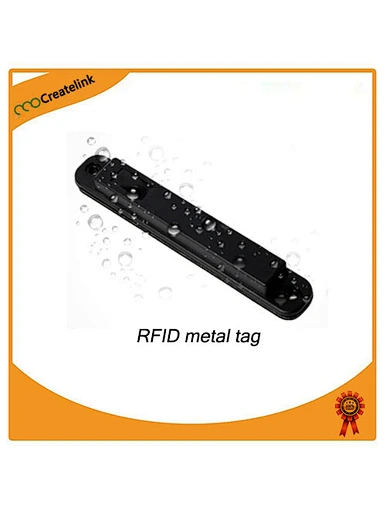

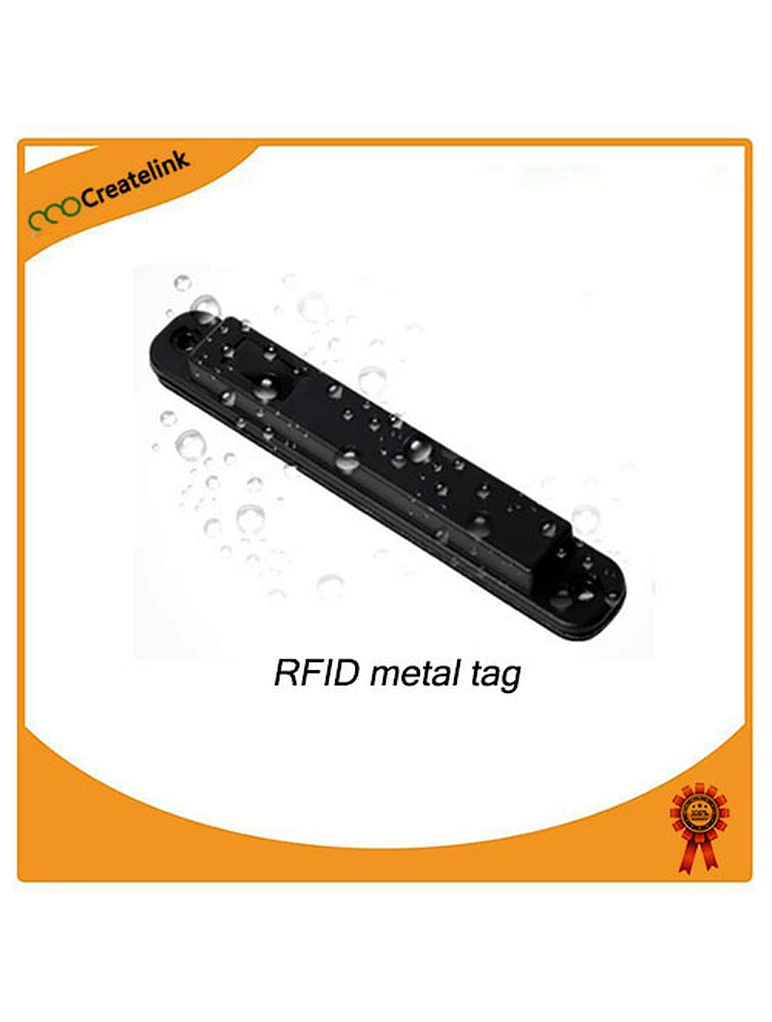

RFID metal tag

Model NO. CL2001T

Delivery FOB

minimum order 500 pieces

Supply Ability 10000000pieces / Month

Country of Origin China

Stock Time 30Day

* 100% tested by the European label conformance testing system to ensure stability during use
* raw material passed environmental protection certification
* Different size optional
* IP68 level widely used indoor outdoor
* 0-12m long reading performance
* Application: Warehousing, Vehicle Management / Logistic / Trucking

Quantity

Item No.	TA8520 new high performance metal tag
Protocol	EPC global C1 Gen2 / ISO 18000-6C
Frequency	902-928MHz, 865-868MHz Optional
Working Mode	Read/Write/ Encryption
Modulation Mode	FHSS
Chip	IMPINJ M4QT or MR6-P or Ucode 8 optional
Housing Material	PCB
Read Range	Fixed reader Sharp HF340 0-12m, Handheld HY820: 0-10m
On	On Metal surface
Size	*Different size optional : 25/3010mm, 36/5213mm, 70/80/9020mm, 808mm, 9525mm or customized optional**
Weight	3-10g
User Memory	EPC 96bit; User memory 688bit
Data Protection	Password modify, lock, kill
Data-hold	>10 years, Wipe more than 100000 times
Ambient Temperature	-20°C ~ 80°C
Storage	-80°C ~ 100°C
Attachment	with self adhesive or by screw or by rivet
Mounting method	Self-adhesive on metal
