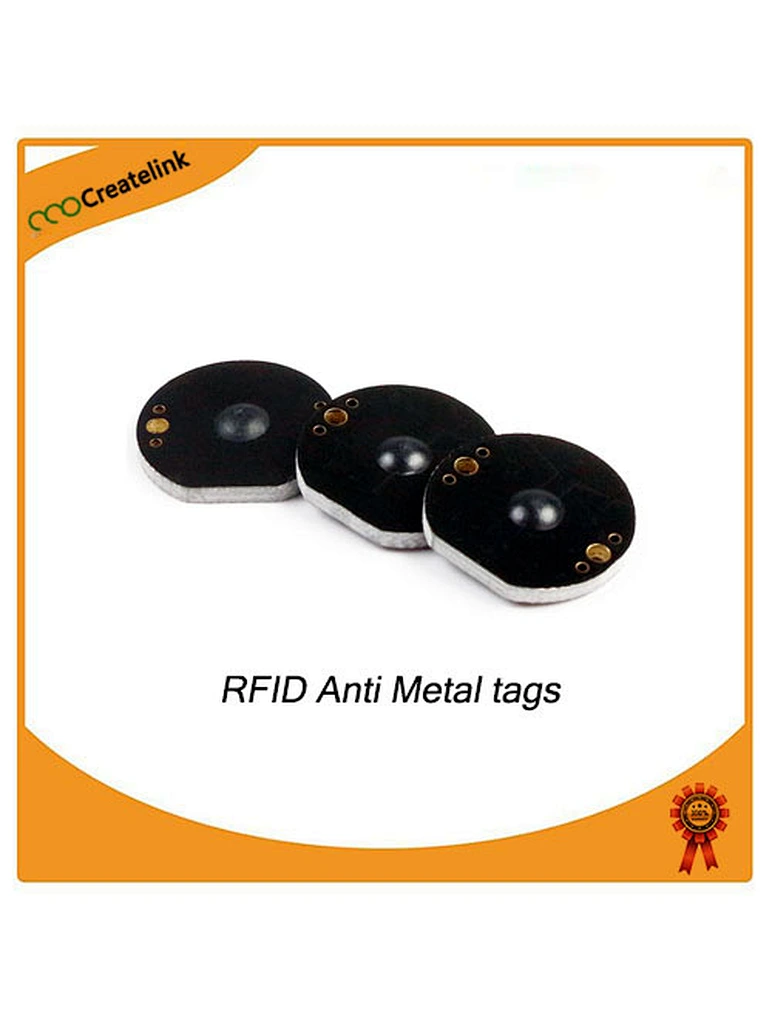

RFID Anti Metal Tags

RFID Anti Metal Tags
RFID Anti Metal Tags
CL2002C
FOB
1000 pieces
1000000pieces / Month
China
25Day

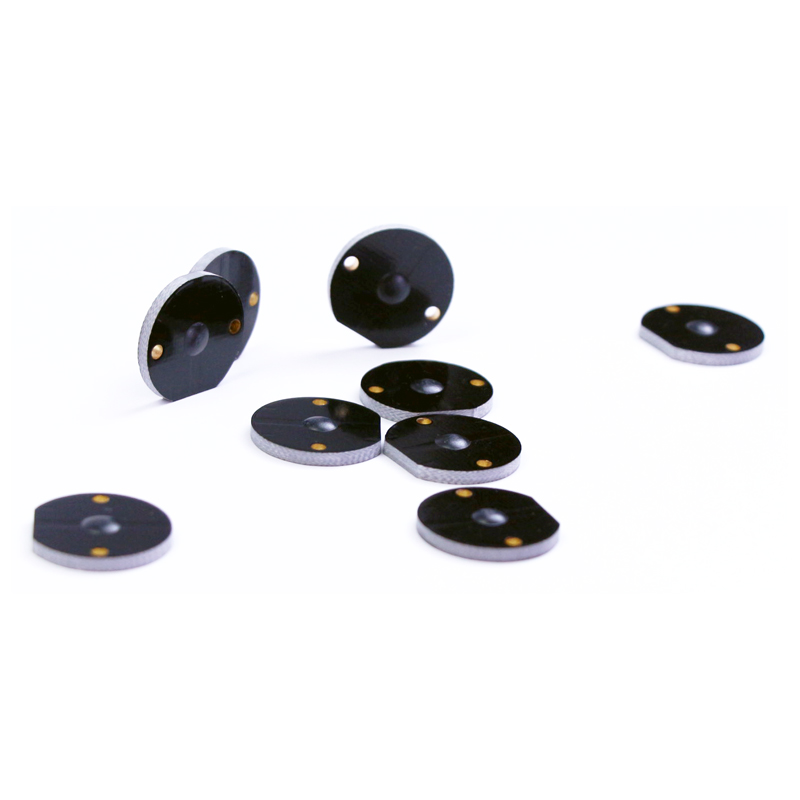

Createlink provides a wide range of RFID PCB Tags, that can be used for various purpose.

RFID PCB Tag can be easily placed or can be embedded on PCB for better tracking in various industries as Supply Chain Management, Logistics Tracking & Management, Production Tracking, Inventory Control, Product Authenticity. These tags are mounted directly on PCB.

The PCB RFID Tags are designed on FR-4 base material, solving the problem that tag can’t work well on the metal surface. And they can be customized on various sizes.

Please contact us today for a free consultation and factory direct pricing!
Quantity


Physical Specifications
*Model
PCBD20
*Size
Diameter 20mm x Thickness 2.8mm
*Material
FR4(PCB)
*Color
Black(Red, Blue, Green, White)
*Mounting Methods
Embed, Adhesive
*Weight
1.9g
Functional Specifications
*RFID Protocol
EPC Class 1 Gen 2, ISO18000-6C
*Frequency
902-928MHz(US)
865-868MHz(EU)
*IC Type
Alien Higgs-3/NXP UCODE8
*Memory
EPC 96bits(up to 480bits),
User 512bits, TID 64bits
*Write Cycles
100,000 times
*Functionality
Read/Write
*Data Retention
Up to 50 Years
*Applicable Surface
Metal Surface
*Read Range
(Fixed Reader)
320cm, 902-928MHz(US), on metal
280cm, 865-868MHz(EU), on metal
*Read Range
(Handheld Reader)
240cm, 902-928MHz(US), on metal
230cm, 865-868MHz(EU), on metal
*Warranty
1 Years
Environmental Specifications
*IP Rating
IP68
*Storage Temperature
-40°C to +150°C
*Operation Temperature
-40°C to +100°C
*Certifications
ATEX, Reach, RoHS, CE
