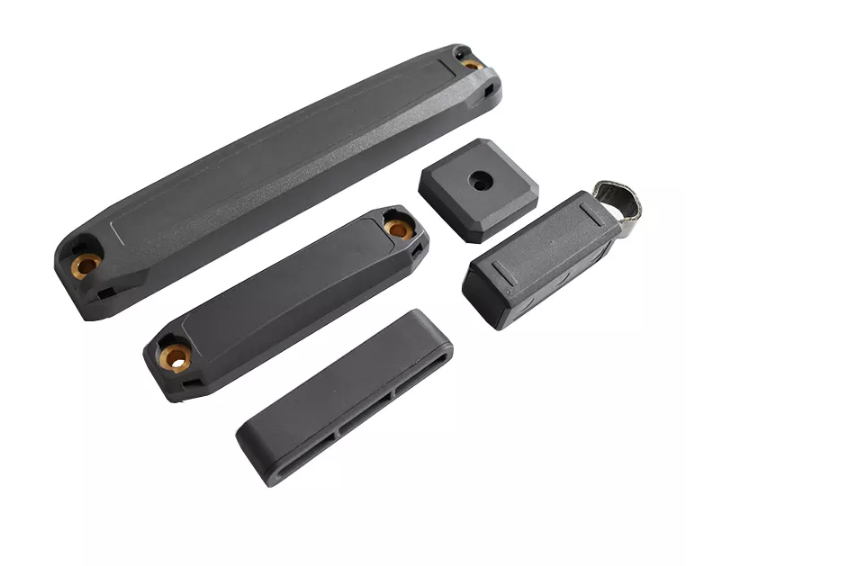

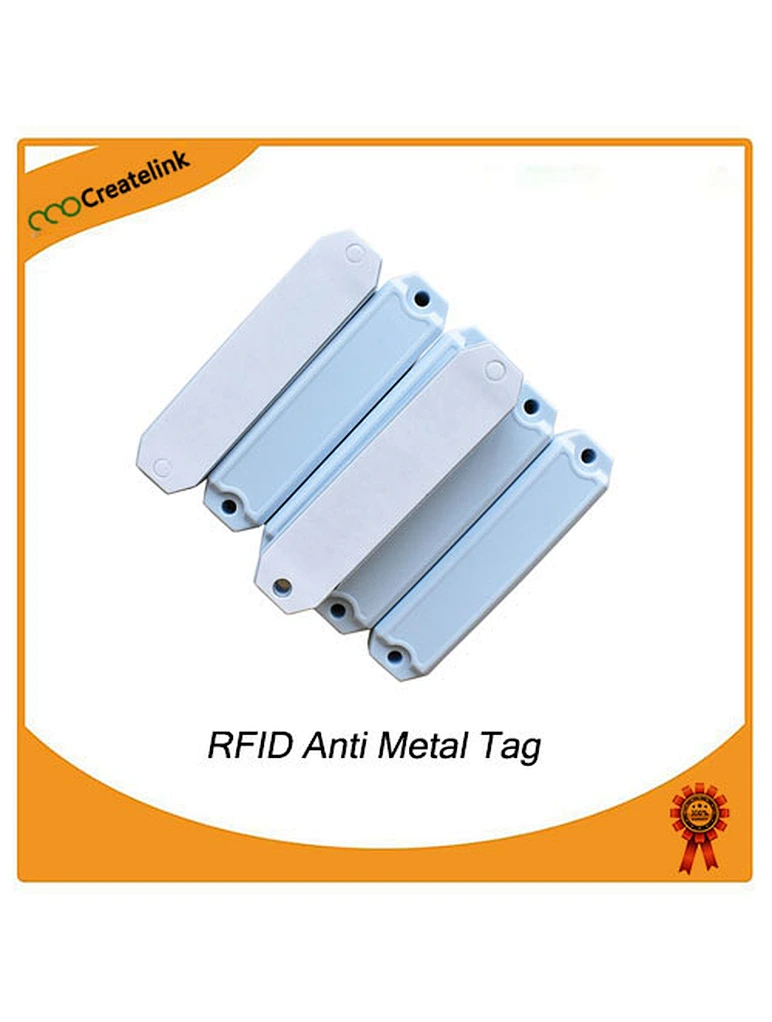

RFID Anti Metal Tags
CL2001W
FOB
1000 pieces
1000000pieces / Month
China
25Day
This uhf rfid anti metal tag can be widely used in indoor and outdoor asset management and inspection management. It can achieve good RF performance on metal and non-metal surfaces.
The performance of the product is stable and reliable
The performance of the product is stable and reliable
Quantity
| Model | RL-TM68 |
| Size | 85*21*10mm or customized |
| Weight | 15g |
| Frequency | 865-868MHz or 902-928MHz,or customized |
| Chip | Impinj M4QT |
| Data storage | EPC 128bits, User 512bits |
| Protocol | ISO18000-6C/EPC Class1 Gen2 |
| Read Distance | 4-10m(depend on reader and environment) |
| Data Storage | More than 10 years |
| R/W Cycles | Up to 100000times |
| Storage Temperature | -30°C--80°C |
| Work Temperature | -20°C--70°C |
| Installation | Screw,Rivet,ribbon,3M adhesive(option) |
| Application | Storage shelves and locomotive management IT facility chassis management Management of large and medium metal containers Power box, power facility management Indoor and outdoor office buildings with metal enclosures Personnel inspection management Management of public facilities such as street lights and traffic light poles Equipment controller board management Manufacturing Management, Logistics management equipment management Iron and steel industry applications |
