US $0.08 - US $0.15 / pieces

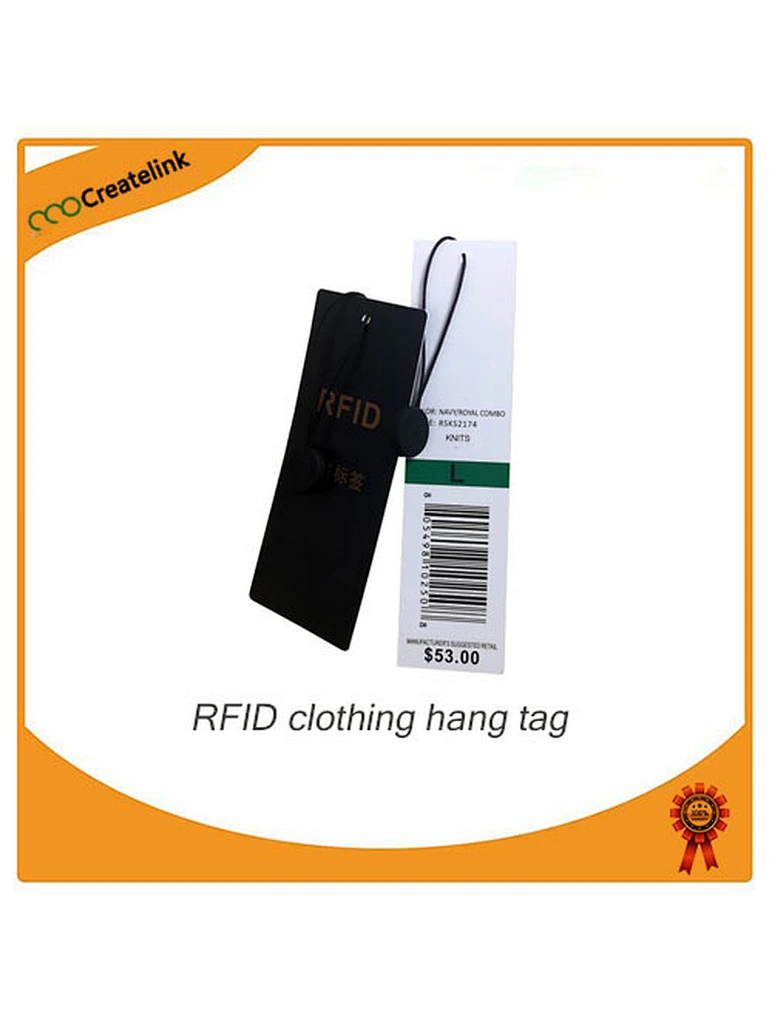

is the most outstanding application where RFID technology impacts on clothing industry. Through radio frequency signal, RFID garment tag can automatically identify target objects and get relevant data, identify work without manual intervention. It can work in all kinds of bad environment, identify the high-speed moving objects at the same time through the RFID technology. Because of convenient operation, RFID garment tag can help you to solve various problems of clothing stores and storage areas, which will improve the work efficiency.
RFID Parameter | rfid label for clothing |
Model No. | LDR-12040H |
Type | Passive UHF RFID Hang Tag |
Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
Frequency | Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
Chip | Ucode 8 |
Memory | EPC 128bits |
TID 96bits | |
User 32bits | |
Read&Write | Supported |
Read Range | 1-10meters adjustable(reader and environment dependent) |
Data retention | 10years |
Programming Cycles | 100,000 cycles |
Anti-collision | Support multiple tags reading |
Physical Parameter | |
Size | 90×40×0.76mm / 3.54×1.57×0.03inch |
Material | Paper |
Antenna Material | Aluminum Etching |
Installation | Hang with string |
Operating temperature | '-10℃ ~ +65℃ |
Operating humidity | 20% ~ 90%RH |
Package | Bags |

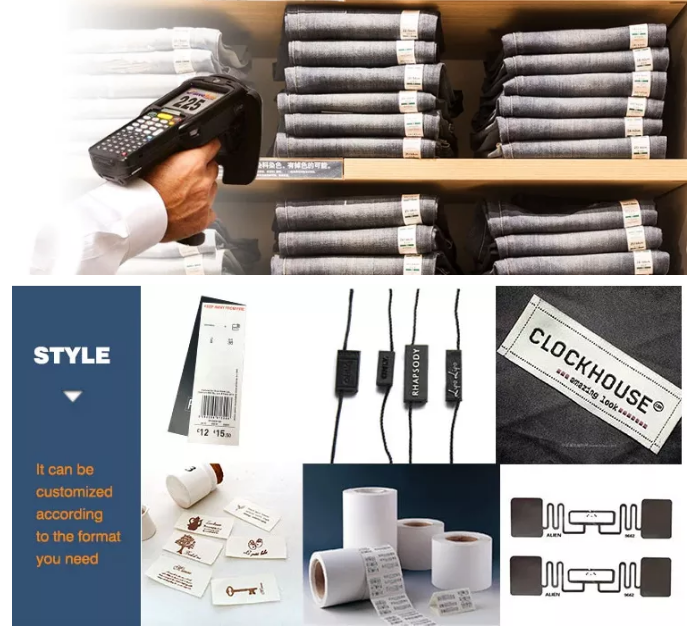

Customized Service | Printing Logo and designs optional; Size bigger or smaller optional; Material Plastic PVC or Paper; Encoding, Chip&Inlay; |
Applications of RFID UHF garment tags:
• Fashion clothing supply chain management
•Clothing retail management
• Clothing enterprise internal management
Advantage of RFID UHF garment tags:
1. Enable fast scanning and reading of products
2. Real-time monitoring of products from raw materials to semi-finished products, finished products, transportation, warehousing, distribution, shelves, sales, and even return processing
3. Establish a safe and reliable management model
4. Help companies achieve a low-cost and efficient supply chain operation system
