US $0.08 - US $0.15 / pieces
RFID Parameter | |
Model No. | LDR-12040H |

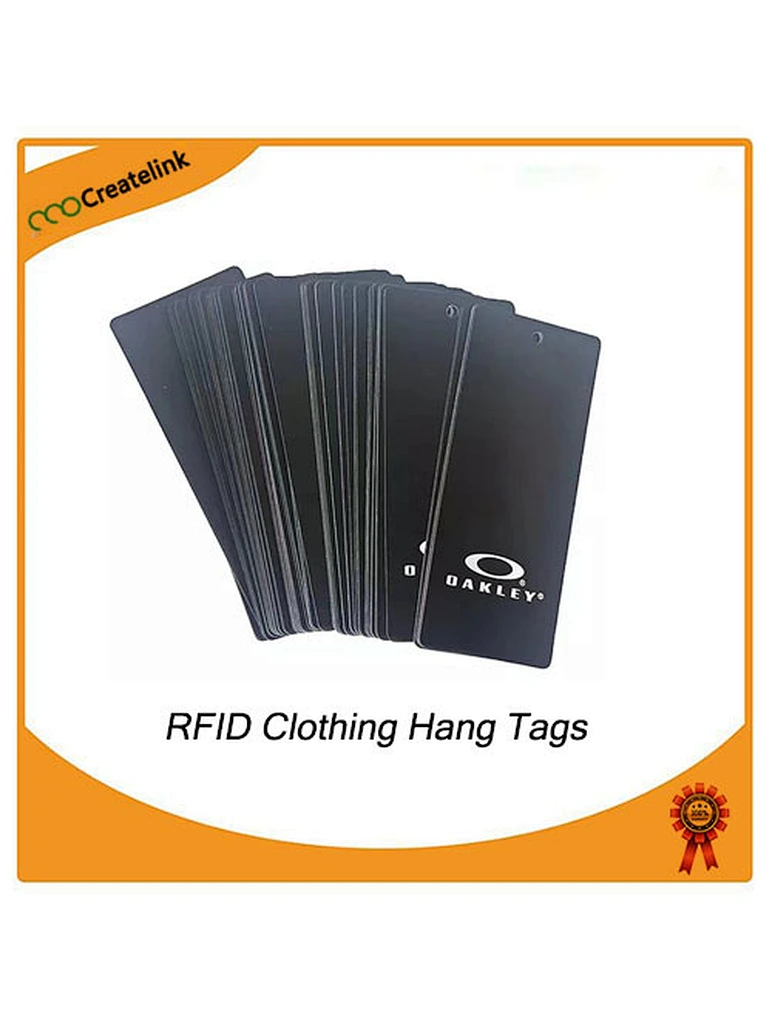

Type | Passive UHF RFID Hang Tag |
Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
Frequency | Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
Chip | Ucode 8 |
Memory | EPC 128bits |
TID 96bits | |
User 32bits | |
Read&Write | Supported |
Read Range | 1-10meters adjustable(reader and environment dependent) |
Data retention | 10years |
Programming Cycles | 100,000 cycles |
Anti-collision | Support multiple tags reading |
Physical Parameter | |
Size | 90×40×0.76mm / 3.54×1.57×0.03inch |
Material | Paper |
Antenna Material | Aluminum Etching |
Installation | Hang with string |
Operating temperature | '-10℃ ~ +65℃ |
Operating humidity | 20% ~ 90%RH |
Package | Bags |
Customized Service | Printing Logo and designs optional; Size bigger or smaller optional; Material Plastic PVC or Paper; Encoding, Chip&Inlay; |
Applications of RFID UHF garment tags:
• Fashion clothing supply chain management
•Clothing retail management
• Clothing enterprise internal management
Advantage of RFID UHF garment tags:
1. Enable fast scanning and reading of products
2. Real-time monitoring of products from raw materials to semi-finished products, finished products, transportation, warehousing, distribution, shelves, sales, and even return processing
3. Establish a safe and reliable management model
4. Help companies achieve a low-cost and efficient supply chain operation system
